Bundle: Router Bit Diamond Stone + Holder
Save with a Bundle
$37.85
$47.90 USUAL PRICE
$10.05 SAVING
| Qty | Product | Usual |
|---|---|---|
| 1 | DC Universal Diamond Stone Holders | $16.95 |
| 1 | Router Bit Diamond Stone 300/600# | $30.95 |
| Ships From: |  MPOWER Canada – Ontario |
|---|---|
| Currency: | Prices shown in $ Canadian Dollars |
| Returns: | Returnable within 30 days of receipt |
| Payment: | Secure transaction |
Description
BUNDLE Saver:
This Promotional Bundle contains:
1 x Router Bit Diamond Stone 300/600#
1 x DC Universal Diamond Stone Holders

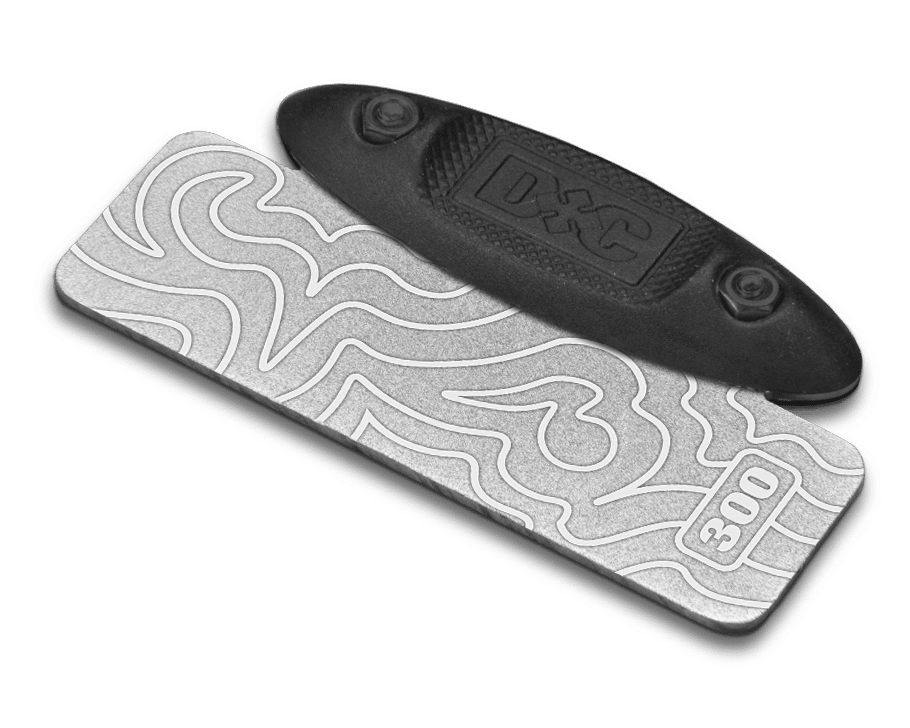

ROUTER BIT DIAMOND STONE 300 / 600#
Our smallest diamond stone, perfect for keeping router bits sharp without taking up shelf space.
Double-sided 300/600 – coarse 300 grit for fast stock removal; fine 600 grit for precision honing. FreeStyle pattern balances grip, wear-resistance, and smooth sharpening. Embedded grade numbers for quick and easy identification. Every stone is hand-assembled and fully inspected in our UK factory. Confidence backed by a long, extended warranty… More Info
DIAMOND STONE HOLDERS:
M.POWER’s Diamond Cross Diamond Stone Holder has a good number of advantages over it’s predecessors.
To start, it can hold a large range of different diamond stone shapes and sizes and not just our new Diamond Cross range either.
From a solid 8” bench stone to any old Credit Card diamond stone. The DSH’s rare earth magnets lock onto the underside of the stone… More Info
Functions
- Sharpens dull router bits quickly and accurately
- Removes burn marks by restoring a clean cutting edge
- Hones both carbide and HSS edges to extend tool life
- Flattens and refines primary bevels using dual-grit surfaces
- Provides fast stock removal (300 grit) for edge preparation
- Delivers fine honing (600 grit) for a polished, clean edge
- Allows controlled, stable sharpening when used with the Diamond Stone Holder
- Helps maintain consistent bit performance and safer cutting
Features
Handy Size
The Router Bit Sharpener is the smallest Diamond Stone in the new range, however it is just as important as the other stones. Keep your bits sharp or risk spending time and energy cleaning up the burn marks left on a routed edge from a blunt bit and given its size it’s hardly going to cramp your shelves.
Double Sided 300-600 Grit
Side One Coarse 50Micron 300 grit diamond grade
For fast stock removal, Ideal for the preparation of the edge.
Side Two Fine 25Micron or 600 grit diamond grade
For honing a primary edge.
Quality Assured
Every MPOWER Router Bit Sharpener is assembled and thoroughly inspected by us at our UK factory, we ensure every diamond stone is perfect prior to packaging and despatch.
5 Year Guarantee
We are so confident of the build quality, each stone is backed by a “no fuss” 3 year extended guarantee.
FreeStyle Recess
The Highly distinctive embossed recesses provides the perfect balance between the ultra hardwearing diamond coverage and anti clog properties of the pattern.
In Surface Grit Indicator
Each side of the stone can be identified by its grade number embedded into the diamond.
Bench Mountable – Diamond Stone Holder
OK so the Router Bit Sharpener is pretty small however it hasn’t stopped us from producing a stone holder that safely holds your Router Bit Sharpener steady on a work surface. It also gives much needed elevation allowing the body of the Router Bit to comfortably clear the work surface when sharpening. The Diamond Stone Holders – DSH can also hold a range of other manufacturers’ credit cards and larger solid bench diamond stones.
Accessories
Applications
Router Bits – Cutters
A sharp router cutter is one of the simplest ways to ensure that any work carried out with a router i.e a molded edge or rebate will turn out with a crisp profile with no tears or burn marks. There’s no real technique to learn sharpening bits either. From large ½” shank mutli profile bits to a tiny 2/16th flute. The Router Bit Sharpener can handle any size or type of bit easily either freehand or when its bench mounted with the Diamond Stone Holder (accessory required)
Saw Blades
A nice surprise was when we discovered just how good the Router Bit Sharpener stone was for sharpening TCT saw blades; It’s down to the contact/sharpening point being so close to the handle. It makes it easier to maintain a constant sharpening angle on both the forward and returning sharpening stroke. Literally a couple of strokes on each tooth will make the world of difference.
Instructions
Diamond Stone Instruction Manual Pg 2
Diamond Stone Instruction Manual Pg 3
Diamond Stone Instruction Manual Pg 4
Diamond Stone Instruction Manual Pg 5
Diamond Stone Instruction Manual Pg 6
Diamond Stone Instruction Manual Pg 7
Diamond Stone Instruction Manual Pg 8
Diamond Stone Instruction Manual Pg 9
Diamond Stone Instruction Manual Pg 10
Diamond Stone Instruction Manual Pg11
Diamond Stone Instruction Manual Pg 12
FAQ, Hints & Tips
Cleaning Bits And Blades
Before attempting to sharpen either a router bit or saw blade. Clean off all the pitch, resin or glue build up. Soaking in a tray of Domestic oven and grill degreasant works well. Or there are specific “specialist” cleaners available but from what I can gather from woodworkers in general. There seems little difference in performance over and above the domestic cleaners. Please read and abide by the safety instructions of any cleaning product that you decide to use.
Blade And Bit Balance
It’s important for the balance of any high speed blade that when it’s being sharpened that each tooth or cutting face receives the same number of sharpening strokes.
Where To Start
When sharpening a saw blade use a marker pen to mark the point at which you start that will let you know which is the last tooth you need to sharpen.
Bedding In
All new diamond stones feel very coarse to the touch regardless of the micron or grit size of the diamond used.
This is a result of the plating process and is quite normal. The stone will bed after a few uses and the difference in grit will become more apparent.
No Pressure
Guilty as charged , As I’ve subsequently learnt I’ve always tended to use too much pressure when sharpening with Diamond stones.
It is absolutely the case that an easy light pressured sharpening stroke is all that is required to gain optimal performance from any of the Diamond stones.
To use too much pressure tears the diamond particles from its nickel bed – compromising the performance of the diamond stone and reducing its serviceable life dramatically.
Lubrication
Again its really down to personal preference as Diamond Cross sharpening stones can be used dry. We do recommend using a lubricant. Water works well or a purpose design lapping fluid but really it’s down to personal choice.
Dangerous Tools
Warning by the very nature of the tools being sharpened i.e. they are ALL designed to cut something. In the wrong hands they can be very dangerous.
Contents & Spares
Main Unit
1 x Router Bit Sharpener Assembly
1 x Diamond Cross Handle 2-Part (50266)
2 x Diamond Cross Handle Screw (50116)
2 x Diamond Cross Handle Nut (50115)
1 x Instruction Manual v2 – VIEW
Main Unit
1 x Diamond Stone Holder Assembly (40059)
1 x Diamond Stone Holder (50112)
2 x Rare Earth Magnet (50055)
1 x Instruction Manual v1
